- So far texture of foods is judge by human sense of mouth feel.
- The human sense is very important criteria but is has big problem.
- Definition is not clear and feeling differs from person to person. Texture Tester TEX-100 can visualize the fuzzy mouth feel with “numeric value” so that you can make objective judgment of the texture.
- For example, if you are manufacturer or server of the foods for children and elderly people, it is very important to check safety hardness for swallowing of such foods.
- Food Texture Tester TEX-100N can be used for researching the food texture that affect to palatability for developing food and for checking as if the food for dysphagia satisfies the criteria.
- It will be a good support for the quality control and inspection in the fields of food manufacturing processes
081362449440 Jual Alat Ukur texture Makanan Texture Tester TEX-100N Texture tester Tex-200N
Update Terakhir
03-04-2024
Minimum Pembelian
1 unit
Dilihat Sebanyak
111 kali
Lokasi
DKI Jakarta - Jakarta Barat - Taman Sari
Harga
Rp. 136.500.000
Bagikan
+ Penawaran
Spesifikasi 081362449440 Jual Alat Ukur texture Makanan Texture Tester TEX-100N Texture tester Tex-200N
Texture Tester
Brand : JISC
===================================================================================
===================================================================================
===================================================================================
===================================================================================
Texture Tester
Brand : JISC
.Fitur Tekstur makanan dapat diukur dan diuji teksturnya. Data seperti kekerasan, adhesi dan kekompakan dapat diukur.
Spesifikasi
Kapasitas beban (N): 200
Ukuran (mm): 338x276x424
Berat (kg): sekitar 16,5
item pengukuran: Kekerasan, Kelengketan, Kekompakan, Kerapuhan (kerapuhan), Elastisitas, Pengunyahan (pengunyahan), Gumping,
Kelengketan Pengujian yang Didukung: Uji Tekstur (Dengan metode analisis profil tekstur), Uji Kekuatan Jelly (JIS K 6503), Uji Kompresi, Uji Tarik, Uji Pengupasan
Kecepatan pengujian: 1 hingga 600 mm/menit
Resolusi beban: 0,01 N (0,001 N dapat ditampilkan)
Antarmuka: USB catu daya: AC100 hingga 240 V
Dengan fungsi berhenti otomatis yang berlebihan OS yang didukung: Windows ® 7/8/10
Aksesoris:
Attachment x 3 set,
Joint Shaft x 1 buah,
PC Software (TEX-PC1) x 1 buah,
Kabel Koneksi PC,
Memori USB,
Wadah Φ 40 mm (Terbuat dari Duracon),
Baki Stainless Steel Ukuran paket:470×430×530 mm
Berat : 25 kg
.
.
.
..

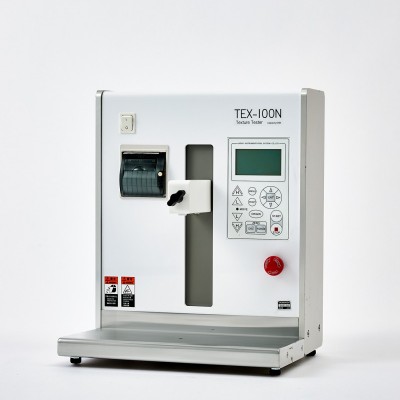

Model : TEX-100N
Brand : JISC
CHARACTERISTICS
TEXTURE TESTING
The tester measures by compressing the food with jig that automatically calculate the data such as hardness and adhesiveness base on the texture profile analysis method
MEASURED DATA
The tester can provide you the following measurement results. Hardness, Adhesiveness, Cohesiveness, Brittleness, Springness, Chewiness, Gumminess and Adhesive force.
APPLICABLE TESTS FOR TEX-100N
- Texture test
- Jelly strength test (JIS K 6503 or minced fish)
- Compression test
- Tension test
- Peel test
MULTIPLE LANGUAGES
- Japanese
- English
- Simple Chinese
- Traditional Chinese
- Korean
SPECIFICATIONS
SPECIFICATIONS | DETAILS |
---|---|
Maximum Load | 100N |
Resolution | 0.01N or 0.001N via Setting |
Load Accuracy | ±1% of Applied Load |
Range Switch Over | Automatic 2-range Switch Over High (100N) Range & Low (10N) range |
Maximum Stroke | 130mm |
Resolution | 0.1 mm or 0.01 mm via setting |
Accuracy | ± (0.05 + 0.0001L) mm where L is the measuring length |
Test Speed | 1~600 mm/min |
Sensor Control | High performance servo motor and ball screw. |
Protective STOP Function | Upper and Lower Limit Switches Overload Stop Protection Emergency Stop Button Stop via STOP key |
Interface | USB-COM (for communication) USB-MEMORY unit etc. |
Power Supply | Single Phase AC 100V~240V (50/60Hz) |
Power Rating | 100VA |
Dimension | W338×D276×H424 |
Weight | Approx. 16.5kg |
===================================================================================
===================================================================================
===================================================================================
===================================================================================
Texture Tester
Model : TEX-200N
Brand : JISC
.Fitur Tekstur makanan dapat diukur dan diuji teksturnya. Data seperti kekerasan, adhesi dan kekompakan dapat diukur.
Spesifikasi
Kapasitas beban (N): 200
Ukuran (mm): 338x276x424
Berat (kg): sekitar 16,5
item pengukuran: Kekerasan, Kelengketan, Kekompakan, Kerapuhan (kerapuhan), Elastisitas, Pengunyahan (pengunyahan), Gumping,
Kelengketan Pengujian yang Didukung: Uji Tekstur (Dengan metode analisis profil tekstur), Uji Kekuatan Jelly (JIS K 6503), Uji Kompresi, Uji Tarik, Uji Pengupasan
Kecepatan pengujian: 1 hingga 600 mm/menit
Resolusi beban: 0,01 N (0,001 N dapat ditampilkan)
Antarmuka: USB catu daya: AC100 hingga 240 V
Dengan fungsi berhenti otomatis yang berlebihan OS yang didukung: Windows ® 7/8/10
Aksesoris:
Attachment x 3 set,
Joint Shaft x 1 buah,
PC Software (TEX-PC1) x 1 buah,
Kabel Koneksi PC,
Memori USB,
Wadah Φ 40 mm (Terbuat dari Duracon),
Baki Stainless Steel Ukuran paket:470×430×530 mm
Berat : 25 kg
.
.
.
..
