GPS Geodetic GNSS RTK ALPHA GEO MATRIXII (A-GEO)
Gambar Produk
GPS Geodetic GNSS RTK ALPHA GEO MATRIXII (A-GEO)
Update Terakhir
30-05-2024
Minimum Pembelian
1 Set
Dilihat Sebanyak
121 kali
Lokasi
Banten - Tangerang Selatan
Harga
Rp. 150.000.000
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi GPS Geodetic GNSS RTK ALPHA GEO MATRIXII (A-GEO)
FITUR a- GEO MATRIXII :
Multi constellation 1408 Satelit
AR Camera
Worry-free Storage 64GB
WiFi and WebUl
IMU Tilt Sensor 120 Derajat
GSM & UHF radio 410 MHz to 470 MHz
Battery & Power 7000mAh 12 jam
1P67
Working Mode Static, Network RTK, UHF RTK, PPK & etc.
SPESIFIKASI :
Performance specificationSatelliteGPS: L1C/A, L1C, L2P(Y), L2C, L5GLONASS: L1, L2, L3BEIDOU: B1I, B2I, B3I, B1C, B2a, B2bGALILEO: E1, E5a, E5b,E6QZSS: L1, L2, L5, L6SBAS: L1, L5IRNSS: L5Channels1408 tracking ChannelsCold start<60 sHot start<15 sPositioning output rate1Hz – 20HzSignal Reacquisition<1sRTK Initialization time<10sInitialization Reliability>99.99%Time accuracy20 nsPositioningCode differential GNSS positioningHorizontal: 0.25 m + 1 ppm RMS
Vertical: 0.50 m + 1 ppm RMS
SBAS differential positioning accuracy²: typically <5m 3DRMSStatic GNSS surveyingHorizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMSReal Time Kinematic SurveyingSingle baseline < 30 KMHorizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1ppm RMSNetwork RTKHorizontal: 8 mm + 0.5 ppm RMS
Vertical: 15 mm + 0.5 ppm RMSPhysicalMaterialMagnesium alloyDimensions120mm*72mm ( without bottom connector 20mm)weight0.76kgOperating temperature-40°C to + 75°CStorage temperature-55°C to + 85°CProtection IPIP67 dust proof, protected from 30min immersion to depth of 1mShockSurvive a 2m pole drop onto concreteVibrationMIL-STD-810GHumidity100%, condensingPower SupplyBatteryPower: 9~24V DC external power input on 5 pin LEMO portSupport USB Type-C fast chargingInternal 7000mAh-7.4V lithium-ion batteryBattery LifeRover Mode: 12 hoursbase Mode: 7 hoursStatic Mode: 15 hoursCommunication & Data StorageI/O interfaceLEMO port (5pin)
Supports power input, serial port control,
and external radio communicationUSB Type-C port Data download / ChargingSim card slot Supports Nano-SIMAntenna port UHF antenna interfaceRadio modemTransmit power 1/1.5w switchableFrequency band 410MHz-470MHz; supports to set the frequencyProtocols TrimTalk450s, SOUTH, Satel,PCC-EOTCellularIntegrated full frequency multi band 4G modem,
supports WCDMA/CDMA2000/TDD-LTE/FDD-LTEWIFI802.11 b/g standard, access point & client mode,
supports access to hotspot for correction transmissionBluetoothBluetooth 5.2 Classical/BLE Proprietary double-modeData formatRTCM2x, RTCM3x, CMR & CMR+, sCMRxRINEX, NMEA outputsStorage64GB internal memory, supports cyclic storage; with ability
to collect over one year raw observation based on 5 seconds intervalCameraAR5M high-definition camera with large viewing angle and support
for live scene loftingLaser assisted5M high-definition camera, large viewing angle, auxiliary
laser measurement and aimingSystem integrationOS systemIntelligent LINUX operating systemTilt CompensationIMU up to 120°(Calibration free)Supported controllersAll android devices with supported softwareDesignButtonPower keyIndicatorPower indicator, data link indicator, satellite indicator, Bluetooth indicatorVoiceIntelligent voice promptsWEBUISupport WEBUI configuration

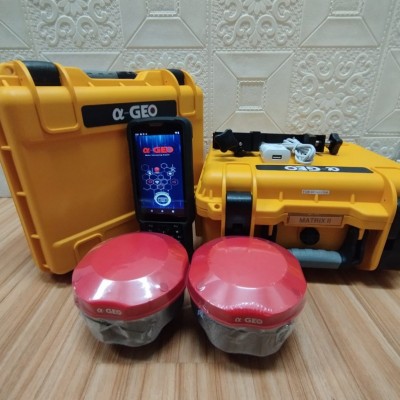

INCLUDE :
base
Rover
Controller
Pole Carbon
Tripod Statif
Tribrach Adapter
Antena Internal
Charger
Kabel Download Data
Box Hardcase
Hubungi :081289854242/08176755161
Multi constellation 1408 Satelit
AR Camera
Worry-free Storage 64GB
WiFi and WebUl
IMU Tilt Sensor 120 Derajat
GSM & UHF radio 410 MHz to 470 MHz
Battery & Power 7000mAh 12 jam
1P67
Working Mode Static, Network RTK, UHF RTK, PPK & etc.
SPESIFIKASI :
Performance specificationSatelliteGPS: L1C/A, L1C, L2P(Y), L2C, L5GLONASS: L1, L2, L3BEIDOU: B1I, B2I, B3I, B1C, B2a, B2bGALILEO: E1, E5a, E5b,E6QZSS: L1, L2, L5, L6SBAS: L1, L5IRNSS: L5Channels1408 tracking ChannelsCold start<60 sHot start<15 sPositioning output rate1Hz – 20HzSignal Reacquisition<1sRTK Initialization time<10sInitialization Reliability>99.99%Time accuracy20 nsPositioningCode differential GNSS positioningHorizontal: 0.25 m + 1 ppm RMS
Vertical: 0.50 m + 1 ppm RMS
SBAS differential positioning accuracy²: typically <5m 3DRMSStatic GNSS surveyingHorizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMSReal Time Kinematic SurveyingSingle baseline < 30 KMHorizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1ppm RMSNetwork RTKHorizontal: 8 mm + 0.5 ppm RMS
Vertical: 15 mm + 0.5 ppm RMSPhysicalMaterialMagnesium alloyDimensions120mm*72mm ( without bottom connector 20mm)weight0.76kgOperating temperature-40°C to + 75°CStorage temperature-55°C to + 85°CProtection IPIP67 dust proof, protected from 30min immersion to depth of 1mShockSurvive a 2m pole drop onto concreteVibrationMIL-STD-810GHumidity100%, condensingPower SupplyBatteryPower: 9~24V DC external power input on 5 pin LEMO portSupport USB Type-C fast chargingInternal 7000mAh-7.4V lithium-ion batteryBattery LifeRover Mode: 12 hoursbase Mode: 7 hoursStatic Mode: 15 hoursCommunication & Data StorageI/O interfaceLEMO port (5pin)
Supports power input, serial port control,
and external radio communicationUSB Type-C port Data download / ChargingSim card slot Supports Nano-SIMAntenna port UHF antenna interfaceRadio modemTransmit power 1/1.5w switchableFrequency band 410MHz-470MHz; supports to set the frequencyProtocols TrimTalk450s, SOUTH, Satel,PCC-EOTCellularIntegrated full frequency multi band 4G modem,
supports WCDMA/CDMA2000/TDD-LTE/FDD-LTEWIFI802.11 b/g standard, access point & client mode,
supports access to hotspot for correction transmissionBluetoothBluetooth 5.2 Classical/BLE Proprietary double-modeData formatRTCM2x, RTCM3x, CMR & CMR+, sCMRxRINEX, NMEA outputsStorage64GB internal memory, supports cyclic storage; with ability
to collect over one year raw observation based on 5 seconds intervalCameraAR5M high-definition camera with large viewing angle and support
for live scene loftingLaser assisted5M high-definition camera, large viewing angle, auxiliary
laser measurement and aimingSystem integrationOS systemIntelligent LINUX operating systemTilt CompensationIMU up to 120°(Calibration free)Supported controllersAll android devices with supported softwareDesignButtonPower keyIndicatorPower indicator, data link indicator, satellite indicator, Bluetooth indicatorVoiceIntelligent voice promptsWEBUISupport WEBUI configuration
INCLUDE :
base
Rover
Controller
Pole Carbon
Tripod Statif
Tribrach Adapter
Antena Internal
Charger
Kabel Download Data
Box Hardcase
Hubungi :081289854242/08176755161
