Spesifikasi Pressure Hydrometer Cylinder Pressure Hydrometer Cylinder ASTM D1657 and ISO 3993 ready stock murah
Update stock per Tgl 11-06-2024 Ready stock 3 Unit..

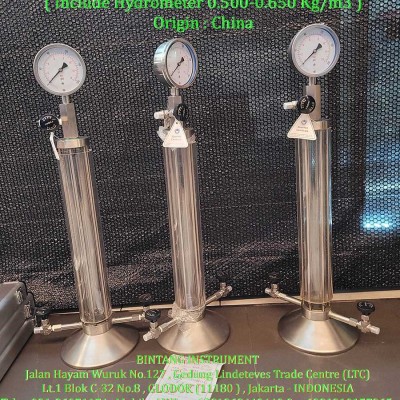

Pressure Hydrometer Cylinder ( Include Hydrometer 0.500-0.650 Kg/m3 )
Model: AI SO ISE
Origin : China
Harga sudah termasuk Hydrometer Range 0.500-0.650
Certificate : ISO9001-2008
Working Pressure : 1.4MPa
Thread of Valves : M14*1.5 or 1/4 NPT M
Thread of Gauge : M20*1.5(M) or 1/4 NPT F
Transport Package : According to Orders, Wooden or Carton Box
Specification : According to ASTM D1657
ASTM D1657 Pressure Hydrometer Cylinder for Density of Light Hydrocarbons
Pressure Hydrometer Cylinder is conforming to SH/T 0221 anf ASTM D1657 and ISO 3993(Standard Test Method for Density or Relative Density of Light Hydrocarbons by Pressure Hydrometer). It is applicable at test temperature, Density of LPG and light hydrocarbon which vapor pressure are less than 1.4 Mpa can be tested using this Hydrometer.
Made of plexiglass(plastic), valves, etc, Both ends are sealed tightly with metal and neoprene gaskets. Conforming to the design and recommended dimensions given in below drawing. The cylinder is of such dimensions that the hydrometer float freely within it.
Warning:
A protective shield shall be placed around the cylinder. Replace any cylinders that show signs of fogging, crazing, cracking, or etching.

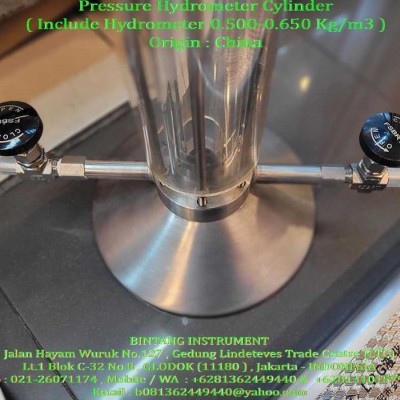

Valves(3 pcs) Thread:
1/4 NPT (M)-M14*1.5(M) Can customized for you for Double-ends 1/4 in Valves Thread
Pressure Gauge Thread:
M20*1.5(M) Can customized for you for 1/4 in Thread
Valves(3 pcs) Thread: 1/4 NPT (M)-M14*1.5(M)/1/4NPT(M) Can customized for you for Valves Thread
Pressure Gauge Thread: M20*1.5(M)/1/4NPT(F) Can customized for you for Valves Thread

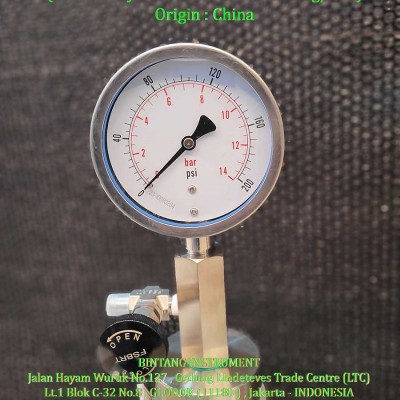

The apparatus comprises of pressure gauge, which makes easier to observe the pressure of the inner tube.
1. Ensure the operating safety. According to ASTM D1657
2. A polymethylmethacrylate pressure cylinder, clear observation of the hydrometer and thermometer
3. Reasonable structure with decent appearance.
