Alpha Geo Lixel K1 LiDAR 3D Scanner Handheld SLAM Mobile RTK
Gambar Produk

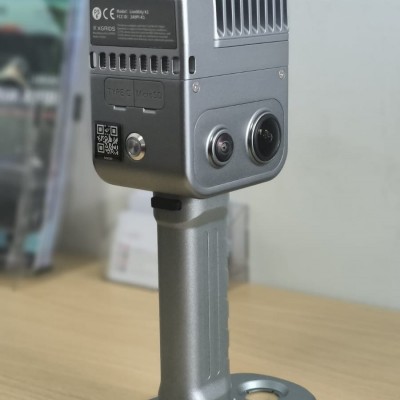

Alpha Geo Lixel K1 LiDAR 3D Scanner Handheld SLAM Mobile RTK
Update Terakhir
12-12-2024
Minimum Pembelian
1 unit
Dilihat Sebanyak
10 kali
Lokasi
Banten - Tangerang Selatan
Harga
Rp. 320.000.000
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Alpha Geo Lixel K1 LiDAR 3D Scanner Handheld SLAM Mobile RTK
Untuk info produk, harga dan ketersediaan produk.
silahkan Chat kami atau WA,
Alpha Geo Lixel K1 LiDAR 3D Scanner Handheld Mobile RTK
Compact & Lightweight
Adopting the aluminum alloy material for K1’s body, makes its weight only 1kg including the battery, extremely light and convenient to carry, easier for work.
Collect as you like
Built-in IMU sensor allows you to hold the device in a certain tilt angle for scanning without having to keep the body upright, making the operation easier.
Real-time true color, delicate presentation
Highly integrated with 56MP panoramic vision module, realize the 360°*360° true panoramic vision, coupling with high-performance computing module, the more exquisite and excellent real-time true color point clouds can be provided on controller APP.
Easy of use, and economic
The operation of K1 is easy to learn and understand, that can make the ordinary people become professional talents of 3D scanning and modeling. A single person can efficiently complete outdoor scanning missions, greatly boosting the productivity.
Multi-line lidar, panoramic collection, no omissions
Equipped with a 40-line lidar with a point rate of 200,000 points/sec, 360° laser horizontal FOV, capturing richer details of objects and no omissions for scanning. Moreover, the ±1.2cm accuracy and 40m measurement distance can meet the demands of the most scenes.
Specification
Power input
14.4V
Power consumption
<20W
Weight
1kg
Data interface
USB3.1 Gen2
Storage Capacity
TF card 256G (Replaceable)
Connection mode
Wifi/Bluetooth
Operating temperature
-20°C~50°C
Protection level
IP54
Product shell
Navigational Aluminum
Power supply
Fast-lock battery/external power
Operating Time
1.5h
Battery capacity
28.8wh
Number of Cameras
4
Visual-Aided Positioning
Supported
APP WiFi distance
20m
RTK module
Supported
Data & Storage
Calculating mode
Real-time calculating/ Mixed calculating
Calculating Software
Lixel Studio post-processing software for Win
Point Cloud Format
.Las
Color point cloud
Supported
Scan Performance
Laser lines
40
Laser Class
Class1/905nm
Relative Accuracy
1.2cm
Absolute Accuracy
3cm
Repeat Accuracy
2cm
Horizontal Accuracy
0.015°
Working Range
0.1m~40m@10%, 70m@80%
LiDar FOV
360°*7°~+52°
Scan mode
Mobile
Scan speed
200,000 points/s
Resume Scanning from Breakpoint
Supported
Visual Module
Camera FOV
Color panorama HDV 360°*360°
Camera resolution
56million
