MESIN RO AIR LAUT 6 TON PERJAM
Perhatian!
Spesifikasi MESIN RO AIR LAUT 6 TON PERJAM

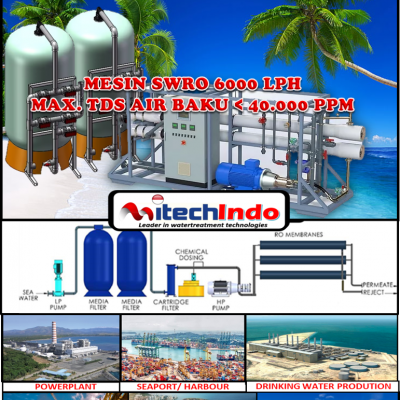

SEAWATER DESALINATION MACHINE
CAPACITY 6M3 PERDAY HOUR
MACHINE SPECIFICATION :
1. PREFILTER
Pompa Raw Water : 3 KW x 380V BY CNP-316L
Activated Sand : 1 Units FRP-Fiber Tank 40"x72"
Activated Carbon : 1 Units FRP-Fiber Tank 40"x72"
Dosing Pump : 1 Unit
2. DESALINATOR UNIT
Desalination Capacity: 6 M3/ Hour
High Pressure Pump : 25KW x 380V
By Centrifugal Multi-Stage 316L atau Axial Pump Duplex 2205
Membrane 8” x 40 “ : 12 Unit
Flow Meter : 2 Unit
TDS Monitor : 1 Unit
pH Monitor : 1 Unit
Pressure Meter : 3 Set
Acccesories :
Interconecting piping For RO system 1 Lot
Piping Line’s From Pure water Tank 1 Lot
to existing Service Water Tank
Size of pipe & connection : 2” & 3”
Material Off Pipe : PVC & SUS 316L
Inter-conecting piping For RO system 1 Lot
Electrical Control System & Cables 1 Lot
Electrical Panel Control + VSD INVERTER 1 Lot
NOTES :
1. RAW WATER TANK & PERMEATE TANKS IS OPTIONAL
2. PLEASE ConSULTING WITH OUR ENGINEERING TEAM
KETERANGAN LEBIH LANJUT CHAT VIA WHATSAPP : +6285730068486
CV. MITCHELL TECHNOLOGY INDONESIA
Design, Perakitan dan Pemasangan Mesin Pengolahan Air , Seperti :
> 1. MESIN ELECTRO-DEIONIZER/ DEMINERALIZER
> 2. MESIN DESALINASI AIR LAUT
RINCIAN SCOPE PEKERJAAN :
INSTALASI PENGOLAHAN AIR ( WTP, WWTP & STP ) :
A. Water-treatment (WTP)/ Pengolahan Air Baku, Seperti:
-Air Baku yang tercemar limbah
-Air Baku yang tercemar/ erupsi air laut, air payau dan air bergambut
B. Waste-WaterTreatment (WWTP)/ Re-cycle, seperti :
- Pengolahan Air Limbah sehingga memenuhi standarisasi Lingkungan Hidup
C. Sludge-WaterTreatment (STP) :
-Pemisahan Air dari Lumpur hasil proses Mining/ Pengeboran
-Limbah Restoran/ Hotel/ Rumah-Sakit Dllnya.
Untuk Konsultasi Silahkan Hubungi kami : 0812-9942-7233, 0812-8058-9570
