Spesifikasi Alinco DR135MK3,Radio Base station


DR135T/EMkIII/Base station

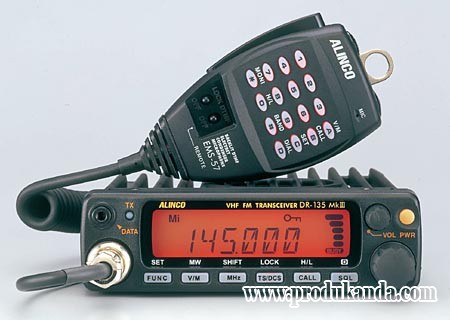

DR-135T/EMKIII


Features of DR-135T/EMKIII

  • Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
  • Voice-only FXE-version available (European model only, EJ-41U/47U not usable).
  • EJ-41U internal TNC board is available as an option for 1200/9600bps packet
  • 50 watts, H/M/L power settings
  • 100 memory channels
  • Front panel data port
  • Rear panel DSUB9 computer connection
  • No need to remove mic for packet operation
  • Ignition key on/off feature
  • CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
  • Clean, clear Alinco audio
  • Super-wide 7 character alphanumeric display
  • Wide and narrow FM modes (16K0 & 8K50F3E)
  • Theft alarm feature
  • A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
  • Stays in mode you select (voice/packet) through
    power off cycles
  • Ten autodial memories
  • and more....at Low Alinco price!
Specifications
Genaral
Frequency range
TX(T): 144-147.995MHz (FM)
RX(T): 118-135.995 MHz (AM)
136-173.995MHz (FM)
TX&RX(E): 144-145.995MHz
Operating mode 16K0F3E (FM)/8K50F3E (Narrow-FM)
F1(9600bps)/F2(1200bps)/10F3 * 1
/A3E (RX only DR135TMkII)
Channel steps 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel 100 channels + 1 quick recall (CALL)
Antenna impedance 50ohm unbalanced
Frequency stability +/- 2.5ppm TCXO
Power supply requirement 13.8V DC +/- 15% negative ground
Current drain Approx. 11.0A TX High
Approx. 0.4A squelched
Usable temperature range -10 - +60c (14 - 140F)
Dimensions (w/o projection) 142(W) x 40(H) x 174(D) mm
5.59"(W) x 1.57"(H) x 6.85"(D)
Weight Approx. 1.0Kg (35.3oz)
CTCSS tone encoder/decoder 39 tones
Digital Coded Squelch encoder/decoder 104 codes
Transmitter
Output power Approx. 50W (HI)
Approx. 20W (MID)
Approx. 5W (LOW)
Modulation system Variable reactance frequency modulation
Spurious emission Less than -60 dB
Maximum frequency deviation +/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
Receiver
Receive system Double-conversion superheterodyne
Sensitivity (-12dB SINAD) *2 Less than -16.0dBu
Intermediate frequency 1st IF 21.7 MHz, 2nd IF 450 KHz
Selectivity *2 -6dB: 12KHz or more
-60dB: 28KHz or less (FM)
-6dB: 6KHz or more
-60dB: 16KHz or less (NFM)
Audio output power More than 2W(8ohm 10%THD)
Note: * 1 Optional units required
* 2 Typical within the amateur radio band(s).
Optional Accessories
Microphones EMS-53 Plain microphone
EMS-57 DTMF/Remote microphone
Separation Cable
Digital voice unit EJ-47U
TNC unit EJ-41U
DC Power supply DM330MVT (120VAC) 30A switching
DM330MVE (240VAC) 25A switching
