Qinsun BLD150 LED Explosion-Proof Lighting 10-160W
Perhatian!
Spesifikasi Qinsun BLD150 LED Explosion-Proof Lighting 10-160W
Energy-efficient : compared with conventional lighting, LED consumes up to 85% less energy.
Long life: last to 60,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.
High light efficiency: dedicated honeycomb mirror enhance bigger lighting area, uniform illumination.
Dual-chamber structure: independent chambers for light source, driver and wiring ensure LED heat will not affect driver and wiring parts.
Optimized heat sink: aluminum housing with air diversion structure removes heat from the LEDs and driver to ensure longer life.
Wide voltage range: AC220V type can operate within 90-260V range.
Multi-protection: constant current with short-circuit and overvoltage protection.
Good EMC: excellent electromagnetic compatibility and anti-interference.
SMT technology: surface mounting technology keeps low working temperature of LED chip.
Standard material: copper-free Aluminum housing, surface with epoxy powder coating, tempered glass and stainless steel external hardware.
Emergency type: 10/20/40W can be battery built-in, last to 60 min working after power cut.
Application:
Oil Refineries
Chemical and petrochemical plants
Onshore plants
Offshore plants
Low temperatures
Fuel depots
Fuel tanker loading / unloading areas
Specification:
|
Classification |
Group II Category 2GD |
|||||||
|
Applicable Zone |
Zone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust) |
|||||||
|
Standards |
IEC60079-0, IEC60079-1, EN60079-0, EN60079-1, IEC60079-31 |
|||||||
|
Ex-mark |
ExdIIC T6 Gb/ExtⅢBT85℃ Db | |||||||
|
Rated Voltage |
AC/DC 220V(*1) 50/60Hz |
|||||||
|
Housing Type |
I |
II |
||||||
|
Rated Wattage |
10W (*2) |
20W(*2) |
30W |
40W(*2) |
60W |
80W |
120W |
160W |
|
Luminous Flux |
1000Lm |
2000Lm |
3000Lm |
4000Lm |
6000Lm |
8000Lm |
12000Lm |
16000Lm |
|
Color Temperature |
5000-5500K(3000K optional) |
|||||||
|
IP Grade |
IP65 |
|||||||
|
Corrosion-proof Grade |
WF2 |
|||||||
|
Ambient temperature |
-20°C~ +60°(-40°C optional) |
|||||||
|
Cable Entry |
G3/4" threads, for cables of Φ10mm~Φ14mm(*3) |
|||||||
|
Terminals |
wires≤2.5mm² |
|||||||
|
Installation |
Bracket(Ceiling/Pendant/Wall/) |
|||||||
Light Distribution:

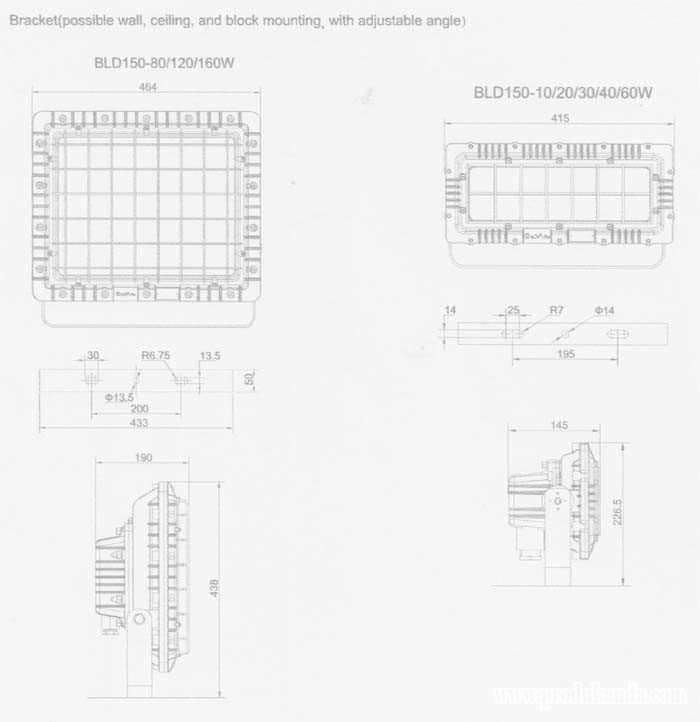

Dimension:
