Qinsun BJD330 Ex-Proof LED Warning Light
Perhatian!
Spesifikasi Qinsun BJD330 Ex-Proof LED Warning Light
● Adopt long life, power LED for light source, over 10 years life expectance.
● Enclosure provides Ex d IIC ex-proof grade and IP65 protection.
● Wide voltage range: AC220V type can operate within 90-265V range.
● Good EMC: excellent electromagnetic compatibility and anti-interference.
● High pressure accurate aluminum die cast housing protects against impact and chemical resistance.
● Wide operating temperature range (-20°C to 60°C).
Application :
Explosive gas atmosphere: Zone 1 and Zone 2;
Combustible dust environment: Zone 20, Zone 21, Zone 22;
Explosive gas atmosphere of IIA, IIB and IIC; T1-6;
Applicable height: 3.5--6.0m;
Installation Distance: 4.0--8.0m;
Widely used in harsh and hazardous environments and industries of Petroleum Industry,
Petrochemical Industry, Shipping Industry, Mining Industry, Military Industry, Metallurgical Industry,
Power Generation Industry, Power Transmission Industry, Railway Industry, Public Security and Fire Fighting, etc.
Spesification :
Classification
Group II Category 2GD
Applicable Zone
Zone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust)
Standards
IEC60079
Ex-mark
Ex d e IIC T6 Gb/DIP A21 TA T6
Rated Voltage
AC/DC 220V(*1) 50/60Hz
Rated Wattage
10W
Flash Frequency
150 times/min
IP Grade
IP65
Corrosion-proof Grade
WF2
Ambient temperature
-20°C~ +60°(-40°C optional)
Cable Entry
G3/4" or NPT 3/4" or M25x1.5
Terminals
wires≤2.5mm²
Installation
Pendent/Seat Mounting
Weight
2.7Kg

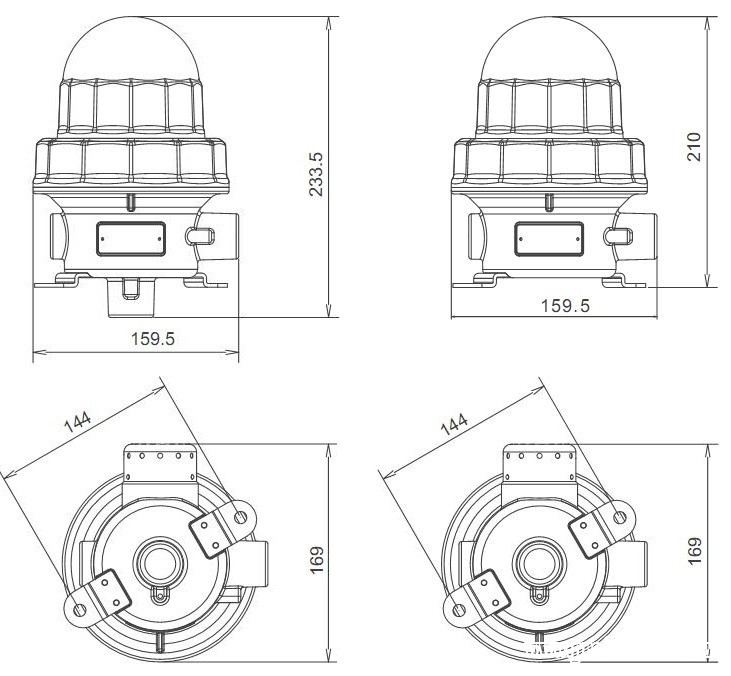

Dimension :
