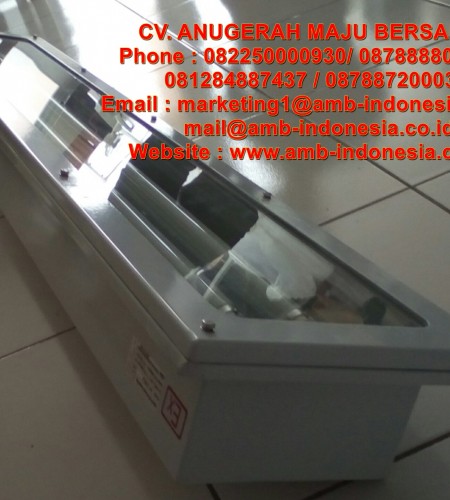

Spesifikasi Lampu TL Ex Proof Reces Mounting HRLM BHY Flourescent

Jual Lampu TL Explosion Proof Reces Mounting Steel Material 1x18W 1x36W 2x18W 2x36W HRLM BHY Ex-Proof Flourescent Lamp Jakarta Indonesia


Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: HRLM EEW OEM ODM
Model Number: BHY
Principle: CFL
Shape: Straight
Explosion protection: ExedIICT5
Rated voltage: AC 220V
Tube options: T10 single-pin instant start tube(1*20W,2*20W,1*40W,2*40W)
Ingress Protection: IP65
Corrosion Resistance: WF1 *WF2
Cable entries specification: G3/4
Cable's outer diameter: 9mm~14mm
Charging time: ≤24h
Emergency start time: ≤0.3s
Emergency lighting duration: ≥90min


SUPPLY PRODUCT BHY Series Explosion Proof Front Access Fluorescent fitting/lamp/light(IIC) - Explosion proof lighting fixture from HRLM Explosionproof Electric Co.
BHY Series Explosion Proof Front Access Fluorescent fitting/lamp/light(IIC) - Explosion proof lighting fixture from HRLM Explosionproof Electric Co.
1 Explosion Proof Front Access Fluorescent Fitting
2 Rated voltage:AC 220V
3 Ingress Protection: IP65


BHY Series Explosion Proof Front Access Fluorescent Fitting (IIC)

  • Application
1  Designed for explosive atmosphere Zone 1, Zone 2
2  Designed for Groups IIA,IIB,IIC
                Temperature classes T1~T5
3  Designed for petroleum exploitation, refinery, storage, chemistry, medicine, military and military facilities etc.sites with potential explosive atmosphere.

  •   Technical Specification
1 Compliance with:GB 3836.1,GB 3836.2,GB 3836.3,IEC60079-0,IEC60079-1,IEC60079-7

2 Explosion protection: ExedIICT5

3 Rated voltage:AC 220V

4 Tube options:T10 single-pin instant start tube(1*20W,2*20W,1*40W,2*40W)

5 T8 Bi-pin tube(1×18W,2×18W,1×36W,2×36W)

6 T5 Bi-pin tube(1×14W,2×14W,1×28W,2×28W)

7 Ingress Protection: IP65

8 Corrosion Resistance:WF1 *WF2

9 Cable entries specification: G3/4

10 Cable’s outer diameter:Φ9mm~Φ14mm

11 Charging time:≤24h

12 Emergency start time: ≤0.3s

13 Emergency lighting duration:≥90min

  • Selecton table
Model
Tube
 Power (W)
Luminous Flux (lm)
Lamp holder
Ballast Type
Explosion Protection
Ingress Protection
BHY-1×20
T10 Single-pin fluorescent tube
 20
760
Fa6



Electromagnetic



ExedIICT5
IP65
BHY-2×20
 40
1520
BHY-1×40
 40
2000
BHY-2×40
80
4000
BHY-1×18E
T8 Bi-pin fluorescent tube
18
1150
G13



Electronic



BHY-2×18E
36
2300
BHY-1×36E
36
2850
BHY-2×36E
72
5700
BHY-1×14E
T5 Bi-pin fluorescent tube
14
1350
G5



Electronic



BHY-2×14E
28
2700
BHY-1×28E
28
2900
BHY-2×28E
56
5800

  • Features
1  Enclosure is bended of sheet steel with high voltage electrostatic powder coated surface.
2  Stainless steel enclosure is available as per request with polished surface.
3  Enclosure and frame are of built-in chain connection structure , internal reflector is turnable, easy to wiring.
4  Fasteners is of against dropping type to facilitate opening maintenance work.
5  Special double seal structure with strong water resistance and dust resistance property.
6  Built-in encapsulation ballast with reliable explosion protection property.
7  Name brand fluorescent tube with long service life and high lighting efficiency.
8  It will be shafted to emergency status when normal power failure.
9  Special designed over charging and over discharging protection circuit inside emergency unit.
10  Polycarbonate lens for ceiling type and recessed 1 type.
11  Toughened glass lens for recessed 2 type.
12  Recessed 2 type with less outer parts after recessed mounted to save the room effectively.




----------------------------------------------------------------------
