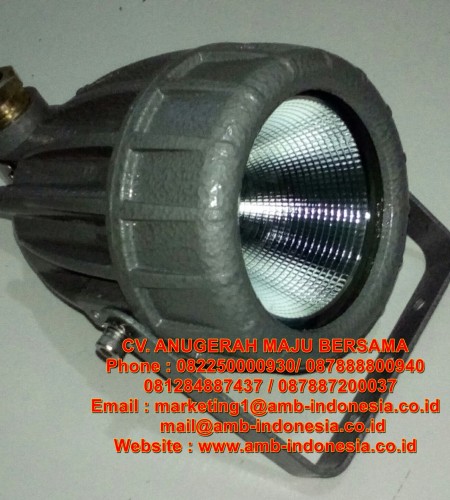

Spesifikasi Lampu Sorot Led Ex Proof Lighting QINSUN BLD230 Spot Light

Jual Lampu Sorot Led Explosion Proof Lighting 5w 10w 20w 30w 40w 60w 70w 80w QINSUN BLD230 LED Ex-Proof Spot Light Jakarta Indonesia
Jual Lampu Sorot Led Explosion Proof Jakarta Indonesia
LED luminaire for general illumination
BLD230 series are built to perform effectively and economically in areas that may be difficult to service, expensive to shut down, or any location requiring an increased degree of safety. Compared with conventional lighting, LED Lighting consume up to 85% less energy and typically last as long as 60,000 hours or more.
Explosive gas atmosphere: Zone 1 and Zone 2;
Combustible dust environment: Zone 20, Zone 21, Zone 22;
Explosive gas atmosphere of IIA, IIB and IIC; T1-6;

FEATURE
 Energy-efficient: compared with conventional lighting, LED consumes up to 85% less energy.
 Long life: last to 60,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.
 High light efficiency: dedicated honeycomb mirror enhance bigger lighting area, uniform illumination.
 Horizontal tri-chamber structure, driver and wiring ensure LED heat will not affect driver and wiring parts.
 Optimized heat sink: aluminum housing with air diversion structure removes heat from the LEDs and driver to ensure longer life.
 Wide voltage range: AC220V type can operate within 90-260V range.
 Multi-protection: constant current with short-circuit and overvoltage protection.
 Good EMC: excellent electromagnetic compatibility and anti-interference.
 SMT technology: surface mounting technology keeps low working temperature of LED chip.
 Standard material: copper-free Aluminum housing, surface with epoxy powder coating, tempered glass and stainless steel external hardware.
 Emergency type: 20/30W can be battery built-in, last to 60 min working after power cut.

Explosive gas atmosphere: Zone 1 and Zone 2;
Combustible dust environment: Zone 20, Zone 21, Zone 22;
Explosive gas atmosphere of IIA, IIB and IIC; T1-6;
Applicable height: 3.5--6.0m;
Installation Distance: 4.0--8.0m;
Widely used in harsh and hazardous environments and industries of Petroleum Industry,
Petrochemical Industry, Shipping Industry, Mining Industry, Military Industry, metallurgical Industry,

Power Generation Industry, Power Transmission Industry, Railway Industry, Public Security and Fire Fighting, etc


Classification
Group II Category 2GD
Applicable Zone
Zone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust)
Standards
IEC60079-0, IEC60079-1, EN60079-0EN60079-1IEC60079-31
Ex-mark
ExdIIC T6 Gb/ExtBT85 Db
Rated Voltage
AC/DC 220V(*1) 50/60Hz
Housing Type
 I
II
III
Rated Wattage
5W
10W
20W*2)
30W(*2)
40W
50W
60W
70W
80W
Luminous Flux
500Lm
1000Lm
2000Lm
3000Lm
4000Lm
5000Lm
6000Lm
7000Lm
8000Lm
Color Temperature
5000-5500K(3000K optional)
IP Grade
IP66
Corrosion-proof Grade
WF2
Ambient temperature
-20°C~ +60°(-40°C optional)
Cable Entry
G3/4threads, for cables of Φ10mm~Φ14mm(*3)
Terminals
wires≤2.5mm²
Installation
Bracket(Ceiling/Pendant/Wall/Fence/Flange mounting)


----------------------------------------------------------------------
