RM YOUNG ULTRASONIC WIND SENSORS Model 81000
Perhatian!
Spesifikasi RM YOUNG ULTRASONIC WIND SENSORS Model 81000
Ultrasonic Anemometer
Voltage and Serial Output
Model 81000

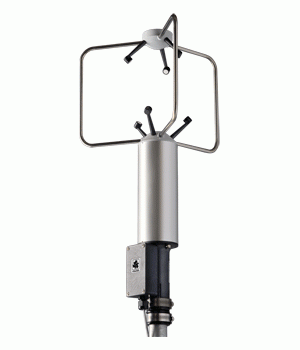

The sensor features durable corrosion-resistant construction with 3 opposing pairs of ultrasonic transducers supported by stainless steel members. Each 81000 is individually wind-tunnel calibrated. Wind and sonic temperature data is available on four voltage output channels. Serial RS-232 and RS-485 outputs are available as well. The sensor installs on standard 1 inch pipe.
 |
 |
| Brochure | 81000 Manual |
Specifications
Wind Speed: 0 to 40 m/s (0 to 90 mph)
Resolution: 0.01 m/s
Threshold: 0.01 m/s
Accuracy: ±1% ±0.05m/s (30 m/s), ±3% (40 m/s)
Wind Direction: 0 to 360 degrees
Elevation Range: ±60 degrees
Resolution: 0.1 degree
Accuracy:
± 2 degrees (30 m/s), ± 5 degrees (40 m/s)
Speed of Sound: 300 to 360 m/s
Resolution: 0.01 m/s
Accuracy: ± 0.1% ± 0.05 m/s (30 m/s)
Sonic Temperature: -50 to +50 ˚C
Resolution: 0.01 m/s
Accuracy: ±2˚C (30 m/s)
Serial Output: User Programmable ASCII, RS-232 or RS-485
1200 to 38400 baud
4 to 32 Hz (user-selected)
Units: m/s, cm/s, mph, knots, km/h
Analog Voltage Outputs:
4 voltage outputs, 0 to 5000 mV
Power Requirement: 12 to 24 VDC, 110 mA
Operating Temperature: -50 to +50 °C
Dimensions:
56cm high x 17cm radius (3 support arms)
Weight: 1.2 kg (2.6 lb)
Shipping Weight: 4.5 kg (10 lb)
