RM YOUNG ULTRASONIC WIND SENSORS Model 81000V
Perhatian!
Spesifikasi RM YOUNG ULTRASONIC WIND SENSORS Model 81000V
Ultrasonic Anemometer
Voltage Inputs
Model 81000V

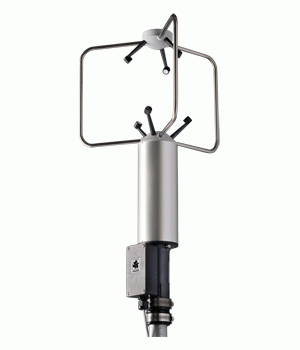

The sensor features durable corrosion-resistant construction with 3 opposing pairs of ultrasonic transducers supported by stainless steel members. Each 81000V is individually wind-tunnel calibrated. Wind and sonic temperature is transmitted serially via RS-232 and RS-485. Signals from up to 4 additional voltage devices may also be included in the serial string. The sensor installs on standard 1 inch pipe.
 |
 |
| Brochure | 81000V Manual |
Specifications
Wind Speed: 0 to 40 m/s (0 to 90 mph)
Resolution: 0.01 m/s
Threshold: 0.01 m/s
Accuracy: ± 1% ± 0.05m/s (30 m/s), ± 3% (40 m/s)
Wind Direction: 0 to 360 degrees
Elevation Range: ± 60 degrees
Resolution: 0.1 degree
Accuracy: ± 2 degrees (30 m/s), ± 5 degrees (40 m/s)
Speed of Sound: 300 to 360 m/s
Resolution: 0.01 m/s
Accuracy: ± 0.1% ± 0.05 m/s (30 m/s)
Sonic Temperature: -50 to +50 ˚C
Resolution: 0.01 m/s
Accuracy: ± 2 ˚C (30 m/s)
Serial Output:User Programmable ASCII RS-232 or RS-485
1200 to 38400 baud
4 to 32 Hz (user-selected)
Units: m/s, cm/s, mph, knots, km/h
Voltage Inputs: 4
Range:
0 to 5000 mV, V1 & V2
0 to 1000 mV, V3 & V4
Resolution: 1 part in 4000
Accuracy: ± 0.1% of full scale
Power Requirement: 12 to 24 VDC, 110 mA
Operating Temperature: -50 to +50 ˚C
Dimensions:
56cm high x 17cm radius (3 support arms)
Weight: 1.2 kg (2.6 lb)
Shipping Weight: 4.5 kg (10 lb)
