RM YOUNG MECHANICAL WIND SENSORS Model 05305
Perhatian!
Spesifikasi RM YOUNG MECHANICAL WIND SENSORS Model 05305
AQ
Wind Monitor
Meets EPA - PSD
Model 05305
U.S. Environmental Protection Agency Ambient Monitoring Guidelines for Prevention of Significant Deterioration (PSD).
U.S. Nuclear Regulatory Agency NRC Regulatory Guide 1.23 Meteorological Programs in Support of Nuclear Power Plants.
American Nuclear Society Standard for Determining Meteorological Information at Power Plants.

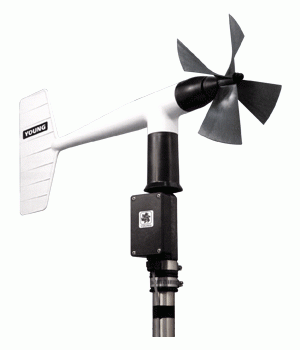

Wind speed is sensed by a lightweight, carbon fiber thermoplastic (CFT), helicoid propeller. The wind direction sensor is a lightweight, balanced vane. The instrument body is UV stabilized plastic with stainless steel and anodized aluminum fittings. The instrument mounts on standard 1 inch pipe. The Wind Monitor-AQ is available with two additional output signal options:Model 05305Voffers calibrated voltage outputs. Model 05305L provides 4-20 mA current signals.
 |
 |
|
|
 |
| Brochure | 05305 Manual |
05305L Manual |
05305V Manual |
Replacement Parts |
Specifications
Range:
Wind speed: 0-50 m/s (112 mph)
Azimuth: 0-360˚
Accuracy:
Wind speed: ±0.2 m/s (0.4 mph) or 1% of reading
Wind direction: ±3 degrees
Threshold:
Propeller: 0.4 m/s (.9 mph) Vane: 0.5 m/s (1.0 mph) at 10˚
Signal Output:
Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) = 9.2 m/s (20.6 mph) Azimuth: analog DC voltage from conductive plastic potentiometer resistance, 10K Ω, linearity 0.25%, life expectancy, 50 million revolutions
Power Requirement:
Potentiometer excitation: 15 VDC maximum
Dimensions:
Overall: 38 cm (15.0 in) H x 65 cm (25.6 in) L, Propeller dia.: 20 cm (7.9 in)
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight:
Sensor weight: 0.7 kg (1.5 lbs), Shipping weight: 2.3 kg (5 lbs)
MODEL 05305V Voltage outputs
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Output Signals: WS: 0-2.5 VDC (0-50 m/s) WD: 0-5 VDC (0-360˚)
MODEL 05305L 4-20 mA outputs
Power Requirement: 8-30 VDC (40 mA max.)
Output Signals: 4-20 mA full scale
