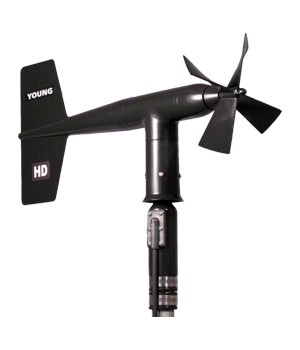

RM YOUNG MECHANICAL WIND SENSORS Heavy Duty Wind Monitor-HD-Alpine Model 05108-45
Perhatian!
Spesifikasi RM YOUNG MECHANICAL WIND SENSORS Heavy Duty Wind Monitor-HD-Alpine Model 05108-45
Heavy Duty
Wind Monitor-HD-Alpine
Model 05108-45
The Wind Monitor-HD-Alpine utilizes extremely long wearing, oversize ceramic bearings to increase the service life many times longer than standard stainless steel bearings. In addition to being more wear resistant, ceramic bearings are resistant to corrosion in environments that are hostile to steel bearings.
The Wind Monitor HD-Alpine also has an oversized propeller shaft, high pitch propeller and locking propeller nut, all features that will further enhance the long term reliability of the sensor.
All external housing surfaces are coated with a specially formulated, ice resistant coating to improve performance in harsh Alpine conditions. The all-black color scheme further enhances the ice shedding performance of the sensor.
The instrument mounts on standard 1 inch pipe.
Brochure | 05108-45 Manual |
05638C Manual |
05608C Manual |
Range:
Wind speed: 0-100 m/s (224 mph)
Azimuth: 360° mechanical, 355° electrical (5° open)
Accuracy:
Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading
Wind direction: ± 3 degrees
Threshold:
Propeller: 1.0 m/s (2.2 mph) Vane: 1.0 m/s (2.2 mph)
Signal Output:
Wind speed: magnetically induced AC voltage, 3 pulses per revolution.
Azimuth: analog DC voltage from conductive plastic potentiometer − resistance 10K Ω , linearity 0.25%, life expectancy − 50 million revolutions
Power Requirement:
Potentiometer excitation: 15 VDC maximum
Sensor Cable:
A 3 meter (9.8 ft) pigtail cable is supplied for electrical connections.
For longer cable lengths a user supplied junction box or connector may be used.
Dimensions:
Overall height: 40 cm (15.7 in)
Overall length: 57 cm (22.4 in)
Propeller: 18 cm (7 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight:
Sensor weight: 1.0 kg (2.2 lbs)
Shipping weight: 2.3 kg (5 lbs)
MODEL 05608C, Wind Sensor Interface (0-5 VDC outputs)
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Operating Temperature: -50 to 60°C
Output Signals: 0-5.00 VDC full scale
MODEL 05638C, Wind Line Driver (4-20 mA outputs)
Power Requirement: 12-30 VDC (40 mA max.)
Operating Temperature: -50 to 60°C
Output Signals: 4-20 mA full scale
