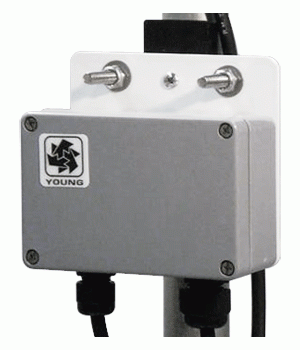

Gambar Produk
RM YOUNG Voltage & Current Interfaces 05603C, 05631C, 05608C, 05638C
Update Terakhir
16-02-2016
Dilihat Sebanyak
141 kali
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi RM YOUNG Voltage & Current Interfaces 05603C, 05631C, 05608C, 05638C
Voltage & Current Interfaces
05603C, 05631C, 05608C, 05638C
0-5 VDC OUTPUTS
The Wind Sensor Interface provides calibrated analog DC voltage signals for wind speed and wind direction.
Specifications
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05106 Wind Monitor-MA
Outputs: 0 to 5.00 VDC
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
MODEL 05631C - WIND LINE DRIVER - FOR USE WITH 05106
4-20 mA OUTPUTS
The Wind Line Driver converts signals from the wind sensor to 4 to 20 mA current loop values.
Specifications
Power Requirement: 12-30 VDC
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05106 Wind Monitor-MA
Outputs: 4 to 20 mA
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
 |
|
|
|
| 05603C Manual |
05608C Manual |
05631C Manual |
05638C Manual |
MODEL 05608C - WIND SENSOR INTERFACE - FOR USE WITH 05108
0-5 VDC OUTPUTS
The Wind Sensor Interface provides calibrated analog DC voltage signals for wind speed and wind direction.
Specifications
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05108 Wind Monitor-HD
Outputs: 0 to 5.00 VDC
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
MODEL 05638C - WIND LINE DRIVER - FOR USE WITH 05108
4-20 mA OUTPUTS
The Wind Line Driver converts signals from the wind sensor to 4 to 20 mA current loop values.
Specifications
Power Requirement: 12-30 VDC
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05108 Wind Monitor-HD
Outputs: 4 to 20 mA
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
