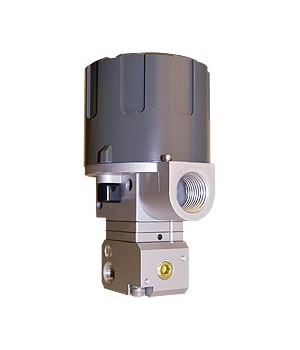

CONTROLAIR : T595XP TRANSDUCER
Perhatian!
Spesifikasi CONTROLAIR : T595XP TRANSDUCER
Specifications
Functional Specifications
Performance SpecificationsPhysical Specifications
 |
 |
|||||||||||||
|
P Connection (with Flow Booster) |
M & N Connection (without Flow Booster) |
|||||||||||||
|
Inputs |
|
|
||||||||||||
|
Outputs |
|
|
||||||||||||
|
Air Consumption |
0.1 scfm (0.17m3/hr) |
2.00 scfh (0.06 m3/hr) @ 4.94 scfh (0.14 m3/hr) @ 8.36 scfh (0.24 m3/hr) @150 psig supply (10.0 BAR) |
||||||||||||
|
Supply Pressure |
|
|
||||||||||||
|
Flow Capacity |
2.4 scfm (4.1 m3/hr)max. |
Same as Air Consumption |
||||||||||||
|
Temperature Limits |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
||||||||||||
|
Relative Humidity |
75% average - 95% short time non-condensing |
75% average - 95% short time non-condensing |
||||||||||||
|
Impedance |
260 Ohms @ 70°F |
260 Ohms @ 70°F |
||||||||||||
|
Loop Load |
5.2 Volts @ 70°F |
5.2 Volts @ 70°F |
Performance Specifications
|
Linearity (Independent) |
<± 0.5% of span |
|
|
Hysteresis |
<±0.3% of span |
|
|
Deadband |
<±0.1% of span |
|
|
Repeatability |
<±0.15% of span typical |
|
|
Mounting Orientation Effect |
<±0.5% / 90 degree change |
|
|
Air Supply Sensitivity |
<.3% / 1.5 (0.10 BAR) psig change |
<±0.6% / 25 (1.72 BAR) psig change |
|
Vibration Effect |
<±1% up to 10g |
|
|
Temperature Effect |
<±0.75% / 10°F (5.6°C) change |
|
Physical Specifications
|
Housing |
NEMA 4X (IP 65) |
||||
|
Port Sizes |
|
||||
|
Media |
Clean, dry, oil-free, instrument air, filtered to 40 micron |
||||
|
Electrical Connections |
Terminal block |
||||
|
Mounting |
Direct (standard) or 2" pipe (optional) | ||||
|
Mounting
|
Housing: Chromate-treated aluminum with epoxy paint. NEMA 4X (IP65) Elastomers: Buna-N Trim: Stainless steel; brass; zinc-plated steel |
||||
|
Weight |
P version=1.40 lbs (0.64 kg) N version=1.25 lbs (0.57 kg) |
