ROTARY EVAPORATOR MODEL HS2005S-N - HAHN SHIN SCIENTIFIC CO, KOREA
Perhatian!
Spesifikasi ROTARY EVAPORATOR MODEL HS2005S-N - HAHN SHIN SCIENTIFIC CO, KOREA
Description

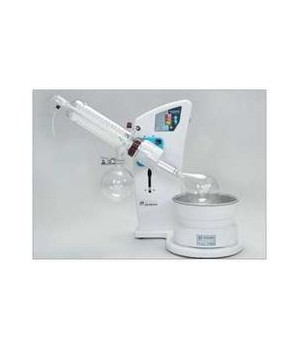

HS-2005S-N is a rotary evaporator with slant type condensor.-Hahn Shin Scientifics special vaccum seal is made of double-binding Teflon and NBR nitrile in order to provide the seal with anti-abrasion, anti-aging, and anti chemical functionality, which enables the machine to make a high vaccum pressure.
-The leaning angle of the evaporating flask can easily be manipulated by screwing a simple bolt type controller.
- Combi-Clip can easily remove or attach the evaporating flask.
- Easy and accurate height control by using a simple up/down button.
-6 different types of flasks are attachable (from 50ml to 3000ml)
Digital speed control
Digital R.P.M Display
Digital interior temperature measure and display (It catches the temperature changes caused by the interior pressure drops)
Motorized UP-DOWN control switch
Included Water bath HS-3001(PTFE coating)
If the amount of water goes down under the certain threshold in the heating bath, the system automatically turns off its power for the safety purpose
Double jacketed bath body (Safe to touch)
Technical info
| Dimensions(W*D*H) | 730*410*630mm |
|---|---|
| Power source | AC 220V 50/60Hz 2.5A |
| Weight | 19.5kg |
| Speed control range | 20~280 R.P.M |
| Heater | 1000W |
| BATH | |
| Bath Material | SUS304 |
| Weight | 2.8kg |
| Bath Dimensions(f * H)mm | 245*120 |
| Capacity | 4.3l |
| Required Power Source | AC 220V 60Hz 4.5A |
| Temp.Control range | Amb.~180C |
| Temp.Setting/Display | Digital control(controlled by the main controller) |
