GW INSTEK GDS-1000B Series
Perhatian!
Spesifikasi GW INSTEK GDS-1000B Series
-
50/70/100MHz bandwidth selections, 2ch or 4ch input
-
1GSa/s maximum sampling rate
-
10M maximum memory depth for each channel
-
7” 800 x 480 WVGA LCD display
-
256 color gradient display function to strengthen waveform performance
-
1Mpts FFT frequency domain signal display
-
Zero Key function for horizontal time, vertical voltage and triggering
-
Compact and innovative exterior design
| GDS-1000B Specifications | ||
| GDS-1054B |
Channels 4 |
|
| GDS-1072B |
Channels 2 + Ext |
|
| GDS-1074B |
Channels 4 |
|
| GDS-1102B |
Channels 2 + Ext |
|
| GDS-1104B |
Channels 4 |
|
| Vertical | Vertical Sensitivity Resolution | 8 bit :1mV*~10V/div |
| Input Coupling | AC, DC, GND | |
| Input Impedance | 1MΩ// 16pF approx. | |
| DC Gain Accuracy* | ±3% | |
| Polarity | Normal & Invert | |
| Maximum Input Voltage | 300Vrms, CAT I (300Vrms CAT II with GTP-070B- 4/100B-4 10:1 probe) |
|
| Offset Position Range | 1mV/div : ±1.25V 2mV/div ~ 100mV/div : ±2.5V 200mV/div ~ 10V/div : ±125V |
|
| Waveform Signal Process | Plus, -, ×, ÷, FFT, FFTrms, User Defined Expression FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman- Harris |
|
| Trigger | Source | CH1, CH2, CH3*, CH4*, Line, EXT** *four channel models only. **two channel models only. |
| Trigger Mode | Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence |
|
| Trigger Type | Edge, Pulse Width, Video, Pulse Runt, Rise & Fall, Timeout, Alternate, Event-Delay(1~65535 events), Time-Delay(Duration, 4nS~10S), Bus |
|
| Holdoff range | 4ns to 10s | |
| Coupling | AC, DC, LF rej., Hf rej., Noise rej. | |
| Sensitivity | 1div | |
| External Trigger | Range | ±15V |
| Sensitivity | DC ~ 100MHz Approx. 100mV 100MHz ~ 200MHz Approx. 150mV |
|
| Input Impedance | 1MΩ±3%~16pF | |
| Horizontal | Time base Range | 5ns/div ~ 100s/div (1-2-5 increments) |
| ROLL: | 100ms/div ~ 100s/div | |
| Pre-trigger | 10 div maximum | |
| Post-trigger | 2,000,000 div maximum | |
| Timebase Accuracy | ±50 ppm over any ≥ 1 ms time interval | |
| Real Time Sample Rate | 1GSa/s max. | |
| Record Length | Max. 10Mpts | |
| Acquisition Mode | Normal, Average, Peak Detect, Single | |
| Peak Detection | 2nS (typical) | |
| Average | selectable from 2 to 256 | |
| X-Y Mode | X-Axis Input | Channel 1; Channel 3* *four channel models only |
| Y-Axis Input | Channel 2; Channel 4* *four channel models only |
|
| Phase Shift | ±3° at 100kHz | |
| Cursors and Measurement | Cursors | Amplitude, Time, Gating available; Unit: Seconds(s), Hz(1/s), Phase(degree), Ration(%) |
| Automatic Measurement | 36 sets: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase |
|
| Cursors measurement | Voltage difference between cursors ( ΔV) Time difference between cursors ( ΔT) |
|
| Auto counter | 6 digits, range from 2Hz minimum to the rated bandwidth |
|
| Control Panel Function | Autoset | Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo Autoset |
| Save Setup | 20set | |
| Save Waveform | 24set | |
| Display | TFT LCD Type | 7" TFT WVGA color display |
| Display Resolution | 800 horizontal × 480 vertical pixels (WVGA) | |
| Interpolation | Sin(x)/x | |
| Waveform Display | Dots, vectors, variable persistence (16ms~4s), infinite persistence |
|
| Waveform update Rate | 50,000 waveforms per second, maximum | |
| Display Graticule | 8 x 10 divisions | |
| Display Mode | YT, XY | |
| Interface | USB Port | USB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1 |
| Ethernet Port(LAN) | RJ-45 connector, 10/100Mbps with HP Auto-MDIX (Only for the GDS-1054B, GDS-1074B, GDS-1104B.) |
|
| Go-NoGo BNC | 5V Max/10mA TTL open collector output | |

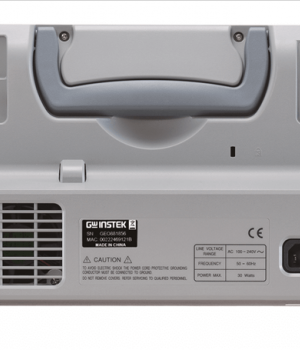

| Kensington Style Lock | Rear-panel security slot connects to standard Kensington-style lock |
|
| Miscellaneous | Multi-language menu | Available |
| Operation Environment | Temperature: 0°C to 50°C. Relative Humidity ≤80% at 40°C or below; ≤ 45% at 41°C ~ 50°C |
|
| On-line help | Available | |
| Dimensions | 380mmX208mmX127.3mm | |
| Weight | 2.8kg | |
