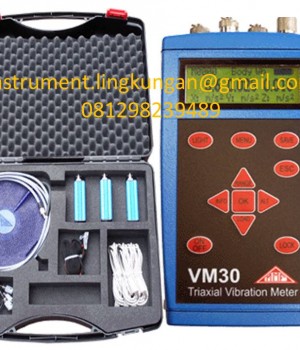

PORTABLE HUMAN VIBRATION METER Hand Arm and Whole Body
Perhatian!
Spesifikasi PORTABLE HUMAN VIBRATION METER Hand Arm and Whole Body
Alat ukur paparan getaran mesin
pada Tubuh
▪ Range Measurement
Human vibration : 0.005 m/s² to 6000 m/s
Vibration Acceleration : 0.005 m/s² to 6000 m/s
Vibration Velocity : 0.05 mm/s to 100 m/s
Vibration Displacement : 0.5 μm to 1000 mm
▪ Accuracy : ± 3 % and ± 2 digits
▪ Frequency weightings : Wh (Hand-Arm); Wb, Wc, Wd,
We, Wg, Wj, Wk and Wm
▪ Other frequency ranges :
Acceleration : 0,4 - 100 Hz, 2-300 Hz,
0,4-1250 Hz, 10- 1250 Hz,
0,4-10 000Hz, 1000-10 000 Hz
Velocity : 2- 300 Hz, 10 - 1250 Hz ;
Displacement : 6 - 200 Hz
▪ Display modes : Running RMS (1 s), max. RMS
(MTVV), interval RMS,
estimated vibration dose value
(eVDV), vibration total value
(ahv), peak, maximum peak
and crest factor
▪ Input channels : 1 to 3 IEPE compatible inputs
▪ Gain ranges : 1 / 10 / 100 / 1000 manually
selectable or autoranging
▪ Setups : 10 individually selectable
parameter sets may be saved
and recalled by key
▪ Memory : > 1000 measurements with
date, time and comment
▪ PC interface : RS-232, 115 KBd/s, 3 pin
socket Binder 711 (female) or
USB / RS-232 adapter
▪ Display : graphic LCD with 120 x 32
pixels and backlighting
▪ Battery : 3 Alkaline Mignon ("AA") cells
▪ External power supply : 8 - 12 VDC, < 150 mA via 5 pin
socket Binder 711 (female)
▪ Dimension : 165 x 92 x 31 mm³; 350 g
(with out connector)
▪ Complete Unit
: Main Unit
: Triaxial accelerometer Hand arm and Whole body.
: Cable 091
: Handle adapter 140 and 142
: Signal cable 034
: Serial interface cable
: Main power supply
: PC Software
: Battery
: Instruction Manual
